Use the Algo 8188 as a private PBX paging endpoint. The PBX connects to IllyVoIP for external calling and decides who may reach the speaker. Do not register an openly reachable auto-answer speaker directly on a public incoming-number route.

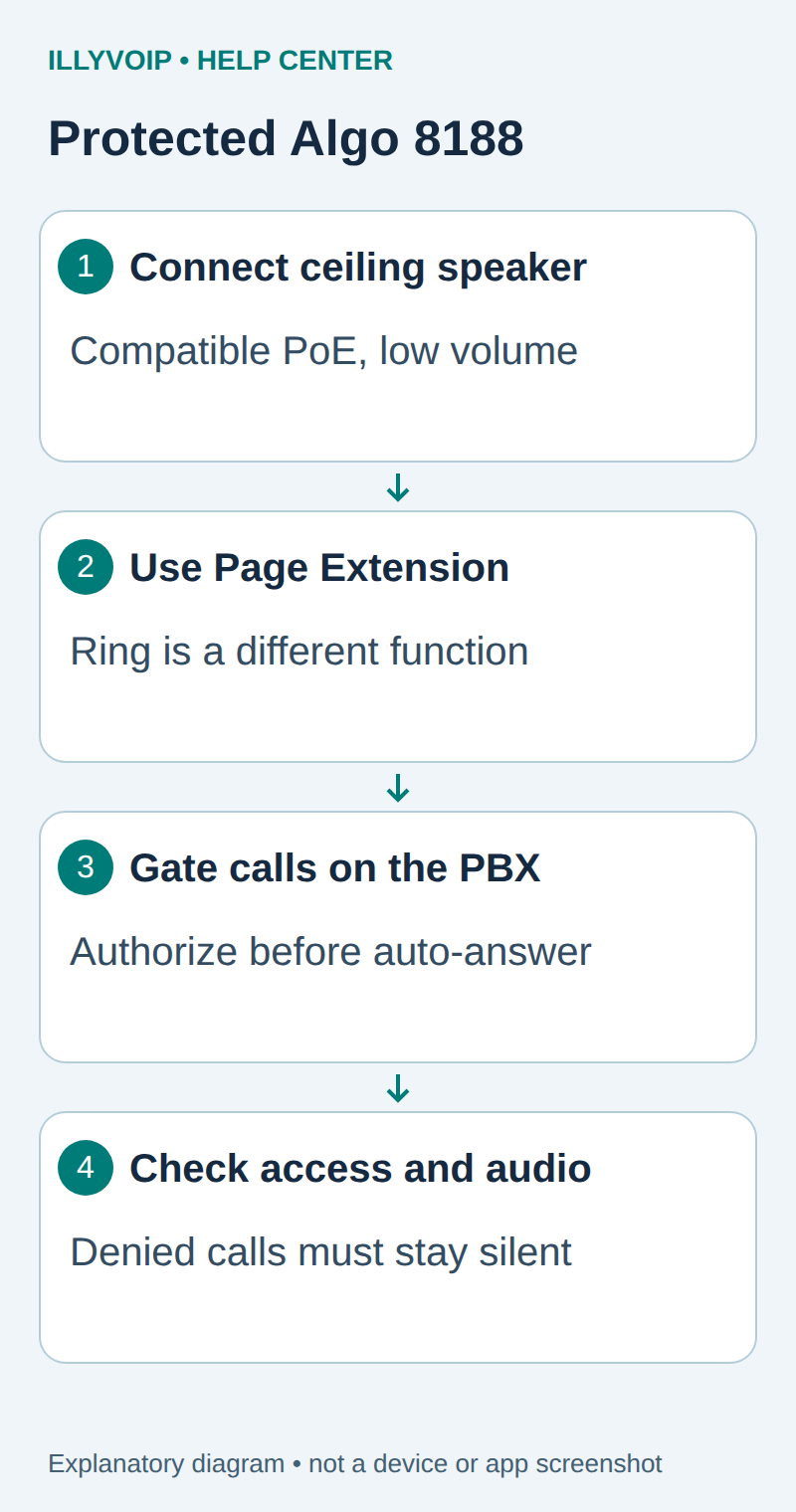

1. Plan the call path before connecting the speaker
The intended path is authorized caller → IllyVoIP number/trunk → protected PBX entry → private speaker extension. Have the PBX administrator provide the extension identity, authentication password, registrar and supported transport. These are PBX extension credentials, not the IllyVoIP trunk password.
Record the existing inbound route and keep a rollback. Choose a short maximum page duration, the allowed callers, and who can test the speaker. Keep its management interface and SIP service on a controlled network.
2. Connect the ceiling speaker
The 8188 is an IP ceiling speaker, not an external-amplifier adapter. Arrange mounting and cabling according to its installation guide and the site’s requirements. Supply compatible IEEE 802.3af PoE and identify the assigned IP address. Start at a conservative output volume and warn people nearby before testing.
3. Register the private paging account
Open Basic Settings → SIP and enter the PBX values below. Save/apply and check that SIP registration reports Successful.
| Setting | Value or action |
|---|---|
| SIP Domain (Proxy Server) | PBX registrar/proxy hostname. |
| Page Extension | Private PBX extension that accepts the page. |
| Authentication ID | PBX authentication username, which can differ from the extension number. |
| Authentication Password | Password for this PBX extension. |
| Ring Extension | Leave unused unless a separate ring-alert function is intentionally required. |
Match the transport and media policy to the line. UDP, TCP and TLS describe signaling; standard RTP, SDES-SRTP and DTLS-SRTP describe different media modes. Selecting a TLS port does not enable TLS automatically or encrypt audio. Use the supplied hostname for certificate verification and keep device time and certificate trust correct. Do not disable a firewall or expose the administration interface to the Internet.
4. Protect entry before enabling an audible page
- Create a dedicated inbound destination on the PBX. Do not send the IllyVoIP inbound route straight to the speaker extension.
- Require an authenticated, authorized internal caller or an interactive PIN check before the PBX dials the speaker. Caller-ID matching alone is not authentication. Keep any PIN outside article examples and use a private value.
- On a missing, wrong or timed-out PIN, end the call without dialing the speaker. Limit retries and use the PBX’s supported failed-attempt controls.
- Dial only the fixed private speaker extension after successful authorization. Set a short maximum page duration, such as 60 seconds, using the PBX’s supported call-duration control.
- Restrict network access to the approved PBX and management hosts. Review alternate entry points, including direct SIP/IP calls and multicast; disable unused paths using documented controls.
Apply these rules using the installed PBX’s documented IVR/routing features. Menu names and enforcement differ between PBXs. If you cannot verify that authentication happens before the speaker is dialed, keep the public route disconnected.
5. Understand Page and Ring behavior
The Page Extension auto-answers and opens the voice path. The separate Ring Extension is for a ringing alert rather than the same answered paging session. Test the Page Extension for speech. Leave unused ring and multicast functions unconfigured, and inspect existing configuration before assuming SIP access restrictions also cover multicast.
6. Test allowed and rejected calls
- With the public route still isolated, verify the private PBX account registers and one authorized internal test produces clear audio.
- Test the protected entry with a wrong PIN, no input and an unauthorized caller. The speaker must remain silent and must not show an answered page.
- Test the correct authorization and speak briefly. Verify volume, intelligibility and the fixed destination.
- Hang up; check the speaker returns to idle. Separately verify the configured duration limit ends a page.
- Only after these checks, route the intended IllyVoIP number to the protected entry and repeat the tests. External calls may incur charges.
Do not send an abuse test from an uncontrolled public host. Have the network administrator verify blocked access within the authorized test scope.
Troubleshooting and rollback
If registration fails, inspect PBX credentials and transport. If an authorized call is rejected, trace the PBX gate first, then the speaker’s account and caller filters. If an unauthorized call produces audio, disconnect the inbound paging route immediately and repair the bypass before retesting. For an answered but silent page, check the Page versus Ring destination, volume, codec and media path.
Restore the recorded PBX route and changed device settings if acceptance fails. This is ordinary paging guidance, not a certified fire, evacuation or emergency-announcement system. IllyVoIP supplies the calling connection; your PBX and site controls enforce paging access.
Documentation and scope
Algo 8188 user guide. Reviewed October 11, 2026. Manufacturer instructions and current IllyVoIP settings inform this guide; physical-device and live-provider acceptance must be completed on your installation.
